SD50TSAC4

Gratus 4 Ton Duct Type Air Conditioner | T3 Scroll Compressor | Heavy Duty Cooling | SD50TSAC4

Model SD50TSAC4 Duct AC Availability on enquiry 1 Year

Experience powerful and efficient commercial cooling with the Gratus SD50TSAC4 4 Ton Duct Type Air Conditioner. Designed with a high-performance Scroll Compressor, T3 tropicalized operation up to 55°C, intelligent protection system, and optimized duct airflow, it delivers reliable, energy-efficient cooling for offices, hotels, restaurants, retail stores, and commercial spaces.

  • 4 Ton Cooling Capacity
  • 47,200 BTU/h T3 Cooling Capacity
  • 2-Fan Scroll Compressor
  • Self-Adaption Technology
  • Up to 55°C T3 Operation
Sales support Price on enquiry

Get current pricing, availability and delivery support from the Gratus team.

Find a store
Description

The Gratus SD50TSAC4 Duct Type Air Conditioner is engineered to provide high-performance cooling for large commercial and industrial environments. Featuring a durable Scroll Compressor, this unit ensures powerful cooling performance while maintaining energy efficiency, even during extreme summer temperatures.

Built for T3 tropical climates, the SD50TSAC4 operates efficiently in ambient temperatures of up to 55°C, making it ideal for the demanding weather conditions of the UAE and GCC.

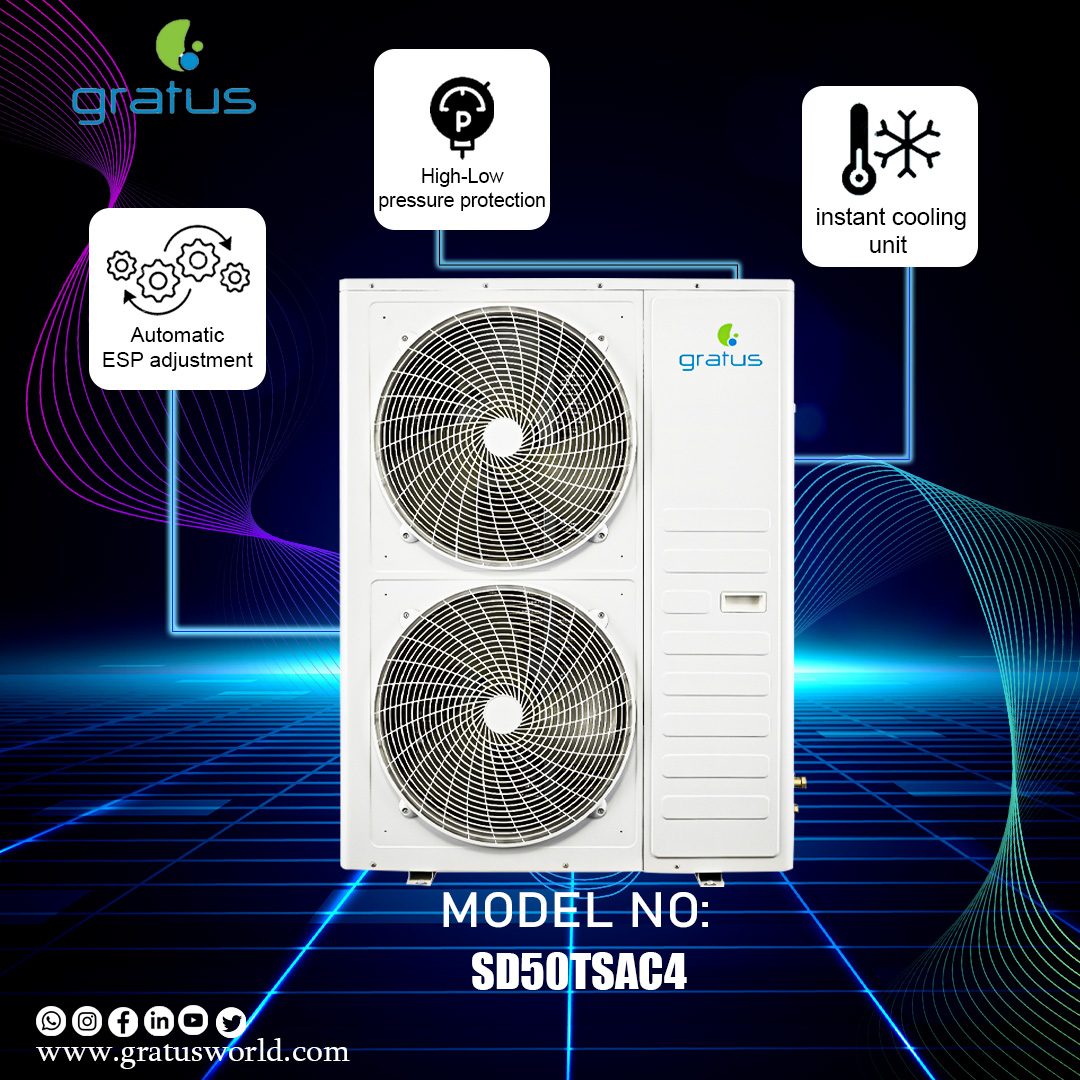

Its advanced Multiple Protection System safeguards the compressor with high-pressure, low-pressure, overload, overheating, anti-freezing, phase-loss, phase-reverse, and sensor failure protection, ensuring long-lasting reliability and uninterrupted performance.

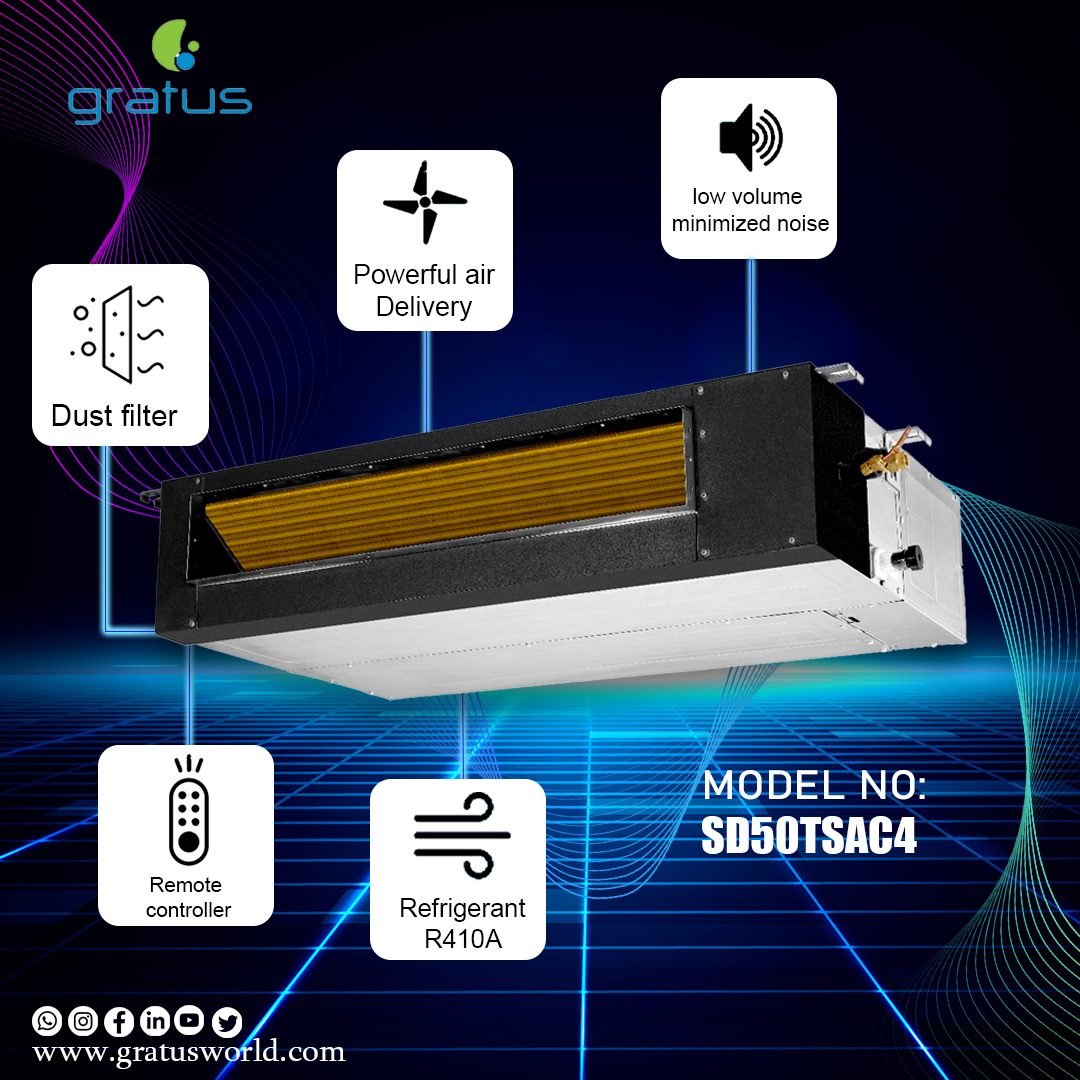

The intelligent Self-Adaption Technology automatically adjusts the External Static Pressure (ESP) according to the duct system, delivering optimized airflow with reduced operating noise for maximum indoor comfort.

Designed with a Flexible Air Intake System, the unit supports rear air intake as standard with an optional bottom air intake, making installation easier for various ceiling layouts and building designs.

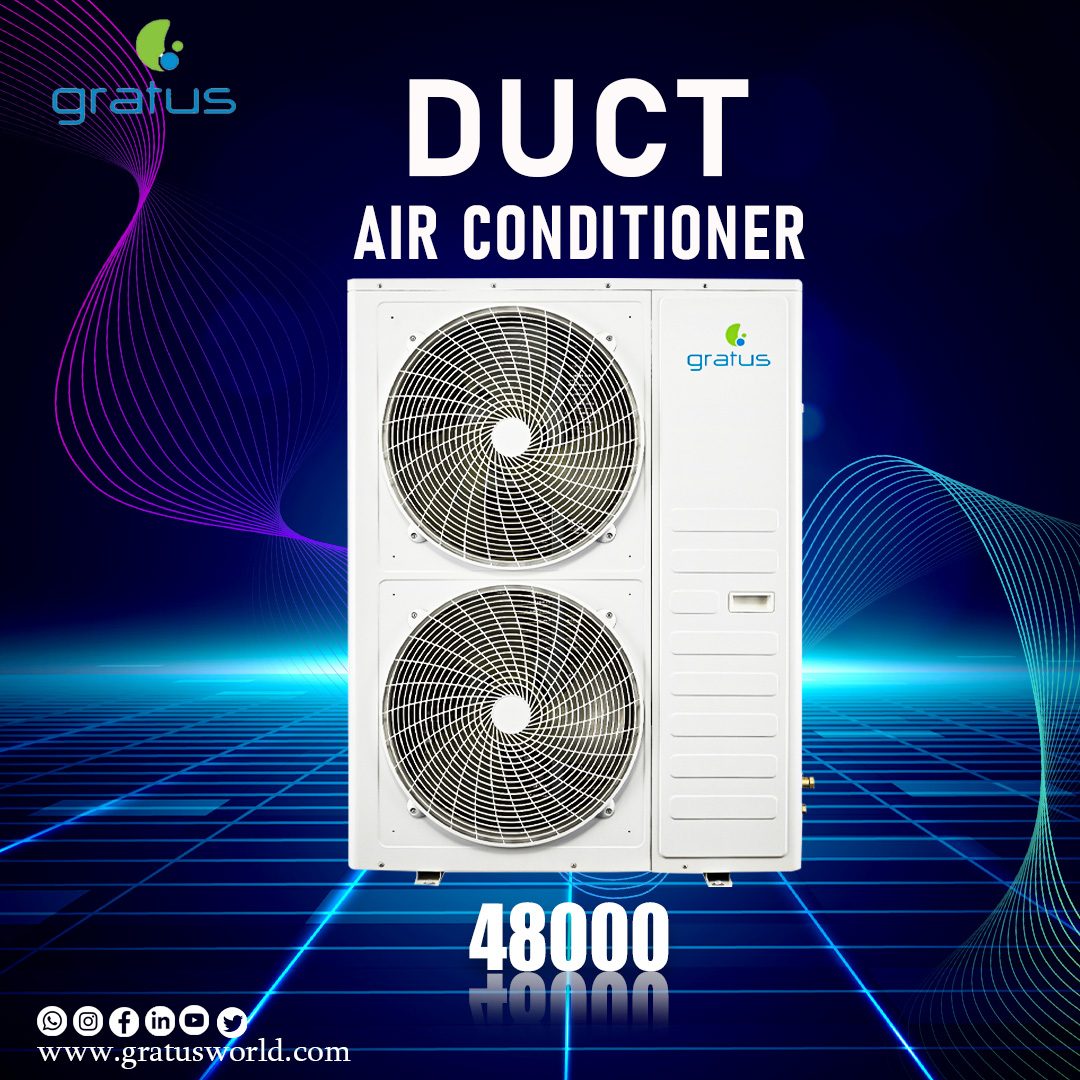

To ensure durability in coastal and humid environments, the outdoor unit is protected by Double Anti-Corrosion Technology, featuring galvanized steel construction with premium powder coating for enhanced resistance against corrosion.

Whether installed in offices, shopping outlets, hotels, restaurants, warehouses, or commercial buildings, the Gratus SD50TSAC4 delivers dependable, quiet, and energy-efficient cooling throughout the year.

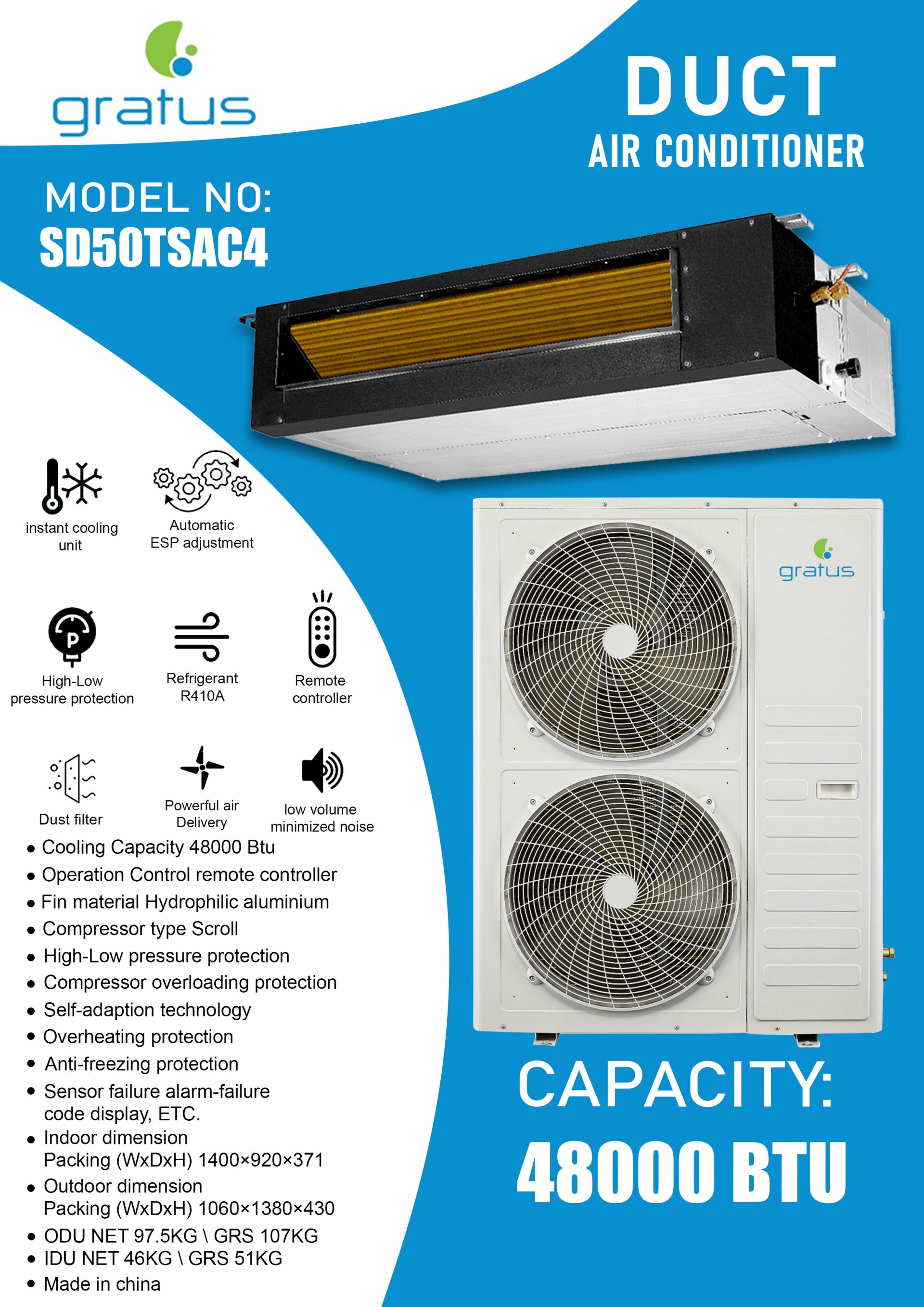

Specifications
  • Model: SD50TSAC4
  • Type: Duct Type Air Conditioner
  • Capacity: 4 Ton
  • Cooling Capacity (T3): 47,200 BTU/h
  • Compressor Type: Scroll
  • Fan Configuration: 2 Fans
  • Operating Condition: T3
  • Maximum Ambient Temperature: Up to 55°C
  • Indoor Power Supply: 220–240V~, 50Hz, 1Ph
  • Cooling Power Input (T1/T3): 2.88 / 3.50 kW*
  • Piping Size: DN20 (R3/4)
  • Outdoor Power Supply: 220–240V~, 50–60Hz, 1Ph
  • Air Intake: Rear Standard / Bottom Optional
  • Installation Type: Concealed Duct / Ceiling Installation
Features
  • 4 Ton Cooling Capacity
  • 47,200 BTU/h T3 Cooling Capacity
  • 2-Fan Scroll Compressor
  • Self-Adaption Technology
  • Up to 55°C T3 Operation
  • Concealed Duct Installation
  • Flexible Rear/Bottom Air Intake
  • Multiple Protection System
  • High & Low-Pressure Protection
  • Compressor Overload Protection
  • Overheating Protection
  • Anti-Freezing Protection
  • Phase-Loss & Phase-Reverse Protection
  • Sensor Failure Alert & Error Code Display
  • Double Anti-Corrosion Technology
  • Galvanized Metal Outdoor Housing
  • Advanced Powder-Coated Finish
  • Optimized Airflow
  • Low-Noise Operation
Warranty supportOfficial Gratus assistance.
Delivery guidanceHelp with UAE delivery options.
Installation helpSupport after purchase.
Customer careFast product enquiry response.

Technical specifications

View full specifications
Warranty1 Year

Features

  • 4 Ton Cooling Capacity
  • 47,200 BTU/h T3 Cooling Capacity
  • 2-Fan Scroll Compressor
  • Self-Adaption Technology
  • Up to 55°C T3 Operation
  • Concealed Duct Installation
  • Flexible Rear/Bottom Air Intake
  • Multiple Protection System
  • High & Low-Pressure Protection
  • Compressor Overload Protection
  • Overheating Protection
  • Anti-Freezing Protection
  • Phase-Loss & Phase-Reverse Protection
  • Sensor Failure Alert & Error Code Display
  • Double Anti-Corrosion Technology
  • Galvanized Metal Outdoor Housing
  • Advanced Powder-Coated Finish
  • Optimized Airflow
  • Low-Noise Operation
Gratus 4 Ton Duct Type Air Conditioner | T3 Scroll Compressor | Heavy Duty Cooling | SD50TSAC4 product detail image

Gratus 4 Ton Duct Type Air Conditioner | T3 Scroll Compressor | Heavy Duty Cooling | SD50TSAC4

The Gratus SD50TSAC4 Duct Type Air Conditioner is engineered to provide high-performance cooling for large commercial and industrial environments. Featuring a durable Scroll Compressor, this unit ensures powerful cooling performance while maintaining energy efficiency, even during extreme summer temperatures.

Built for T3 tropical climates, the SD50TSAC4 operates efficiently in ambient temperatures of up to 55°C, making it ideal for the demanding weather conditions of the UAE and GCC.

Its advanced Multiple Protection System safeguards the compressor with high-pressure, low-pressure, overload, overheating, anti-freezing, phase-loss, phase-reverse, and sensor failure protection, ensuring long-lasting reliability and uninterrupted performance.

The intelligent Self-Adaption Technology automatically adjusts the External Static Pressure (ESP) according to the duct system, delivering optimized airflow with reduced operating noise for maximum indoor comfort.

Designed with a Flexible Air Intake System, the unit supports rear air intake as standard with an optional bottom air intake, making installation easier for various ceiling layouts and building designs.

To ensure durability in coastal and humid environments, the outdoor unit is protected by Double Anti-Corrosion Technology, featuring galvanized steel construction with premium powder coating for enhanced resistance against corrosion.

Whether installed in offices, shopping outlets, hotels, restaurants, warehouses, or commercial buildings, the Gratus SD50TSAC4 delivers dependable, quiet, and energy-efficient cooling throughout the year.

Technical specifications

  • Model: SD50TSAC4
  • Type: Duct Type Air Conditioner
  • Capacity: 4 Ton
  • Cooling Capacity (T3): 47,200 BTU/h
  • Compressor Type: Scroll
  • Fan Configuration: 2 Fans
  • Operating Condition: T3
  • Maximum Ambient Temperature: Up to 55°C
  • Indoor Power Supply: 220–240V~, 50Hz, 1Ph
  • Cooling Power Input (T1/T3): 2.88 / 3.50 kW*
  • Piping Size: DN20 (R3/4)
  • Outdoor Power Supply: 220–240V~, 50–60Hz, 1Ph
  • Air Intake: Rear Standard / Bottom Optional
  • Installation Type: Concealed Duct / Ceiling Installation
