SD25TRAC4
Gratus 2 Ton Duct Type Air Conditioner | T3 Tropicalized | Heavy-Duty Cooling | SD25TRAC4
Model SD25TRAC4 Duct AC
Availability on enquiry
1 Year
The Gratus SD25TRAC4 2 Ton Duct Type Air Conditioner is designed for powerful and energy-efficient cooling in commercial and residential applications. Featuring T3 tropicalized performance, operation up to 60°C, automatic ESP self-adaption, multiple protection systems, and double anti-corrosion technology, it ensures reliable comfort even in extreme climates.
- 23,500 BTU/h Cooling Capacity
- Self-Adaption Technology
- Up to 55°C T3 Operation
- Concealed Duct Installation
- Flexible Rear/Bottom Air Intake
Sales support
Price on enquiry
Get current pricing, availability and delivery support from the Gratus team.
Description
The Gratus SD25TRAC4 2 Ton Duct Type Air Conditioner is engineered to deliver dependable cooling performance for offices, villas, hotels, restaurants, retail outlets, and other commercial spaces. Built to withstand harsh climates, it operates efficiently in ambient temperatures of up to 60°C, making it an excellent choice for the UAE and GCC regions.
Its Automatic ESP Self-Adaption Technology intelligently adjusts airflow according to the ducting system, ensuring optimal air distribution, quieter operation, and enhanced indoor comfort without manual intervention.
The advanced Multiple Protection System safeguards the unit with high-pressure protection, low-pressure protection, compressor overload protection, overheating protection, anti-freezing protection, phase-loss and phase-reverse protection, and intelligent sensor fault detection with error code display, ensuring long-lasting and reliable operation.
Designed for installation flexibility, the unit supports rear air intake as standard with an optional bottom air intake, allowing it to adapt to various ceiling and duct layouts.
Built with Double Anti-Corrosion Technology, the outdoor unit features galvanized steel construction with advanced powder coating, providing superior resistance to corrosion, humidity, and coastal environments for extended durability.
With powerful cooling, intelligent airflow management, and robust construction, the Gratus SD25TRAC4 is an ideal ducted air conditioning solution for demanding residential and commercial environments.
Specifications
- Model: SD25TRAC4
- Type: Duct Type Air Conditioner
- Cooling Capacity: 23,500 BTU/h
- Cooling Condition: T1/T3
- Compressor Type: Rotary
- Indoor Power Supply: 220–240V~, 50Hz, 1Ph
- Indoor Cooling Power Input (T1/T3): 1.96 / 2.35 kW

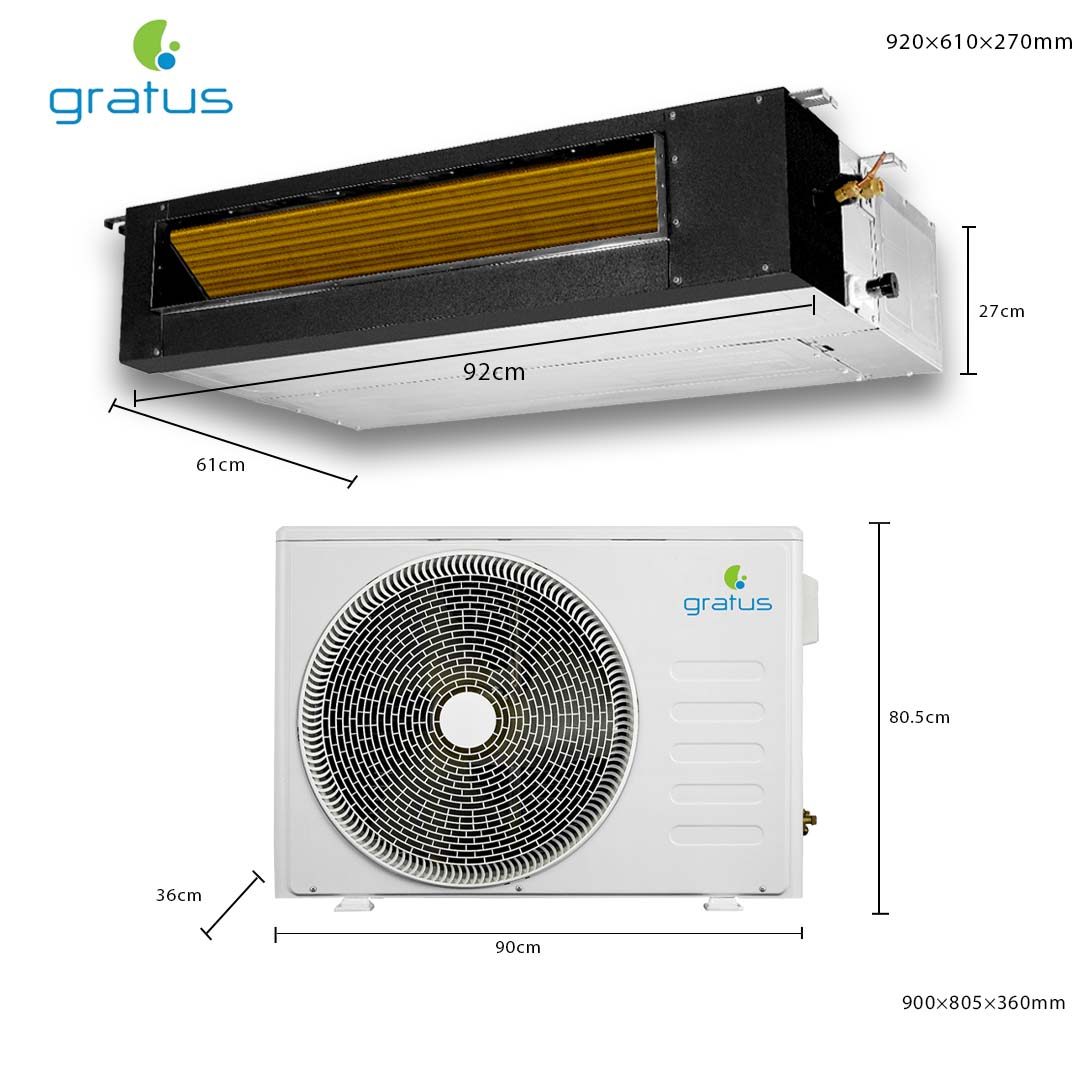

- Indoor Unit Dimensions (W × D × H): 920 × 610 × 270 mm
- Indoor Unit Packaging Dimensions: 1120 × 690 × 340 mm
- Indoor Unit Net/Gross Weight: 26 / 31 kg
- Piping Size: DN20 (R3/4)
- Outdoor Power Supply: 220–240V~, 50Hz, 1Ph
- Outdoor Unit Dimensions (W × D × H): 900 × 805 × 360 mm
- Outdoor Unit Packaging Dimensions: 1020 × 860 × 475 mm
- Outdoor Unit Net/Gross Weight: 55 / 59 kg
- Maximum Operating Ambient Temperature: Up to 55°C
- Installation: Concealed Duct / Ceiling Installation
Features
- 23,500 BTU/h Cooling Capacity
- Self-Adaption Technology
- Up to 55°C T3 Operation
- Concealed Duct Installation
- Flexible Rear/Bottom Air Intake
- Multiple Protection System
- High & Low-Pressure Protection
- Compressor Overload Protection
- Overheating Protection
- Anti-Freezing Protection
- Phase-Loss & Phase-Reverse Protection
- Sensor Failure Alert & Error Code Display
- Double Anti-Corrosion Technology
- Galvanized Metal Outdoor Housing
- Advanced Powder-Coated Finish
- Rotary Compressor
- Optimized Airflow & Low Noise
- 220–240V, 50Hz, Single Phase
Warranty supportOfficial Gratus assistance.
Delivery guidanceHelp with UAE delivery options.
Installation helpSupport after purchase.
Customer careFast product enquiry response.
Technical specifications
View full specificationsTon2
Warranty1 Year
Features
- 23,500 BTU/h Cooling Capacity
- Self-Adaption Technology
- Up to 55°C T3 Operation
- Concealed Duct Installation
- Flexible Rear/Bottom Air Intake
- Multiple Protection System
- High & Low-Pressure Protection
- Compressor Overload Protection
- Overheating Protection
- Anti-Freezing Protection
- Phase-Loss & Phase-Reverse Protection
- Sensor Failure Alert & Error Code Display
- Double Anti-Corrosion Technology
- Galvanized Metal Outdoor Housing
- Advanced Powder-Coated Finish
- Rotary Compressor
- Optimized Airflow & Low Noise
- 220–240V, 50Hz, Single Phase
Gratus 2 Ton Duct Type Air Conditioner | T3 Tropicalized | Heavy-Duty Cooling | SD25TRAC4
The Gratus SD25TRAC4 2 Ton Duct Type Air Conditioner is engineered to deliver dependable cooling performance for offices, villas, hotels, restaurants, retail outlets, and other commercial spaces. Built to withstand harsh climates, it operates efficiently in ambient temperatures of up to 60°C, making it an excellent choice for the UAE and GCC regions.
Its Automatic ESP Self-Adaption Technology intelligently adjusts airflow according to the ducting system, ensuring optimal air distribution, quieter operation, and enhanced indoor comfort without manual intervention.
The advanced Multiple Protection System safeguards the unit with high-pressure protection, low-pressure protection, compressor overload protection, overheating protection, anti-freezing protection, phase-loss and phase-reverse protection, and intelligent sensor fault detection with error code display, ensuring long-lasting and reliable operation.
Designed for installation flexibility, the unit supports rear air intake as standard with an optional bottom air intake, allowing it to adapt to various ceiling and duct layouts.
Built with Double Anti-Corrosion Technology, the outdoor unit features galvanized steel construction with advanced powder coating, providing superior resistance to corrosion, humidity, and coastal environments for extended durability.
With powerful cooling, intelligent airflow management, and robust construction, the Gratus SD25TRAC4 is an ideal ducted air conditioning solution for demanding residential and commercial environments.
Technical specifications
- Model: SD25TRAC4
- Type: Duct Type Air Conditioner
- Cooling Capacity: 23,500 BTU/h
- Cooling Condition: T1/T3
- Compressor Type: Rotary
- Indoor Power Supply: 220–240V~, 50Hz, 1Ph
- Indoor Cooling Power Input (T1/T3): 1.96 / 2.35 kW
- Indoor Unit Dimensions (W × D × H): 920 × 610 × 270 mm
- Indoor Unit Packaging Dimensions: 1120 × 690 × 340 mm
- Indoor Unit Net/Gross Weight: 26 / 31 kg
- Piping Size: DN20 (R3/4)
- Outdoor Power Supply: 220–240V~, 50Hz, 1Ph
- Outdoor Unit Dimensions (W × D × H): 900 × 805 × 360 mm
- Outdoor Unit Packaging Dimensions: 1020 × 860 × 475 mm
- Outdoor Unit Net/Gross Weight: 55 / 59 kg
- Maximum Operating Ambient Temperature: Up to 55°C
- Installation: Concealed Duct / Ceiling Installation
